Portable Saws
ALU

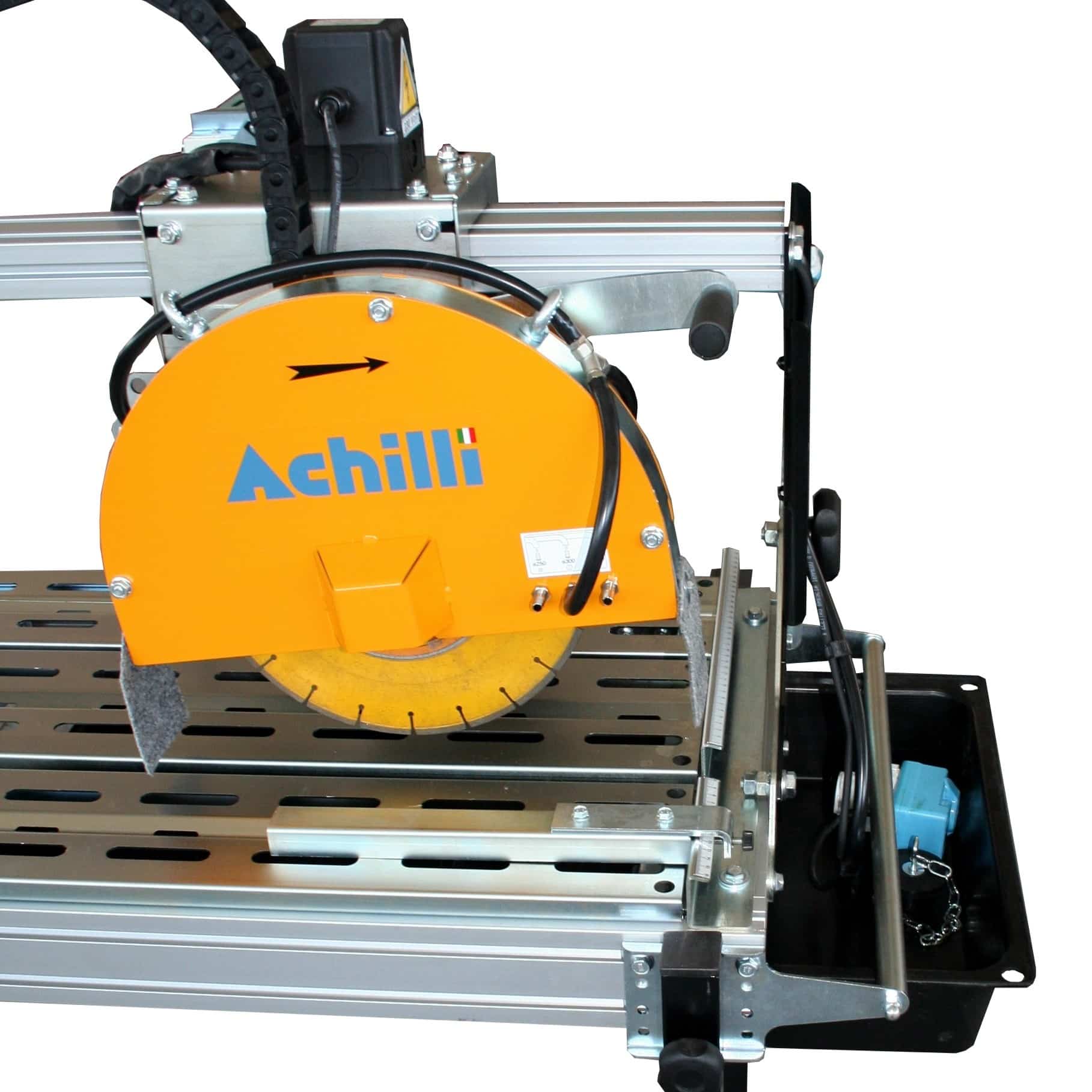

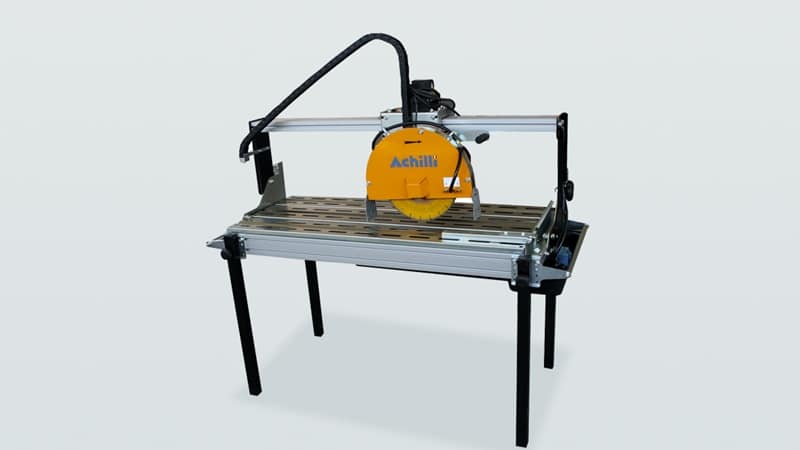

PORTABLE BENCH SAW FOR TILES, STONE AND BUILDING MATERIALS.
Sturdy and precise saw, ideal for straight and angled cutting of bricks, tiles, concrete, and natural stone. The aluminum structure ensures easy transportation while offering excellent resistance to rust and corrosion.
ADVANTAGES
Portable aluminum bench saw designed for cutting stone and building materials.
- Frame and beam made of drawn aluminum, ensuring strength and lightweight handling
- Removable water tank made of impact- and wear-resistant material
- Integrated handles and folding legs for easy transport and quick setup
TECHNICAL DETAILS
| 1 | 2 |
|---|---|
| Useful cut | 600-800-1000-1300-1500 mm (2’- 2’7” – 3’3” – 4’3” – 4’11”) |
| Ø Diamond blade | 250-300-350 mm (10”–12”–14”) |
| Blade bore size | 25,4 mm (1") |
| Motor power | 2.2 kW = 3HP 1phase |
| Motor rotation speed | 2800rpm 50Hz – 3400rpm 60Hz |
| Standard voltage/ frequency | 230V-50/60Hz |
HEAD MOTION
Manual head feed, available with useful cut: 24in. (600mm), 32in. (800mm), 40in. (1000mm), 52in. (1300mm), 60in. (1500mm).

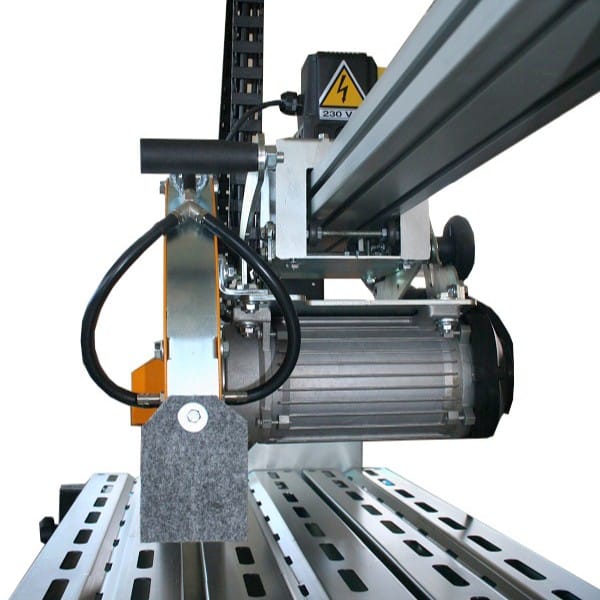

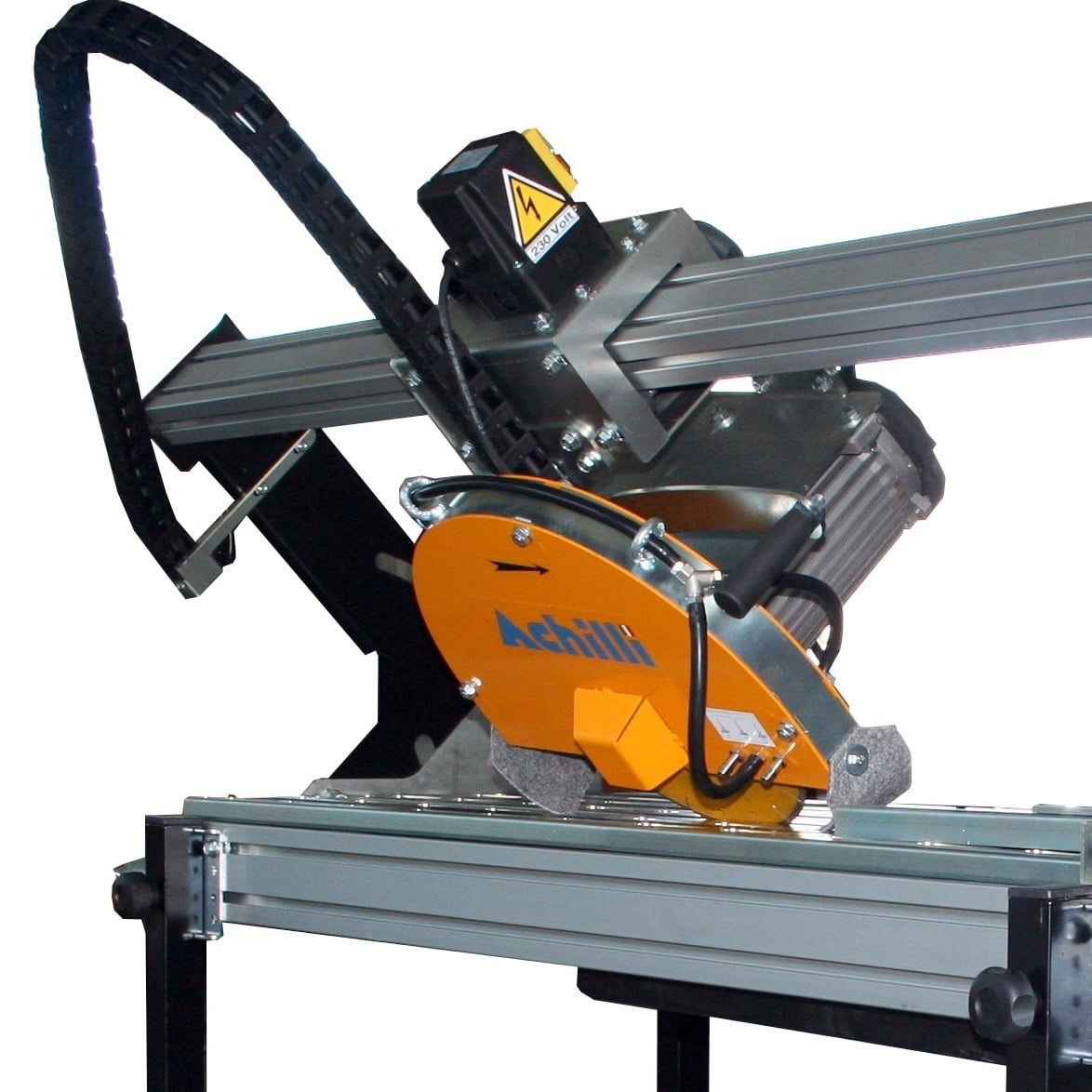

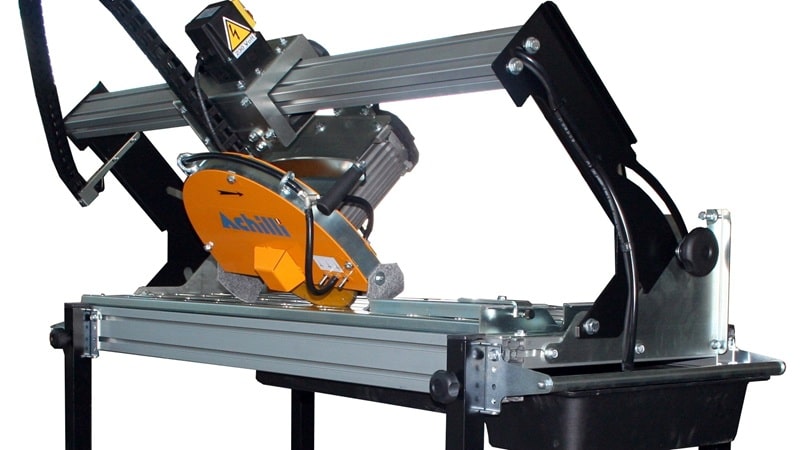

Manual bridge tilt for cutting from 90 to 45 degrees.
WORKTABLE

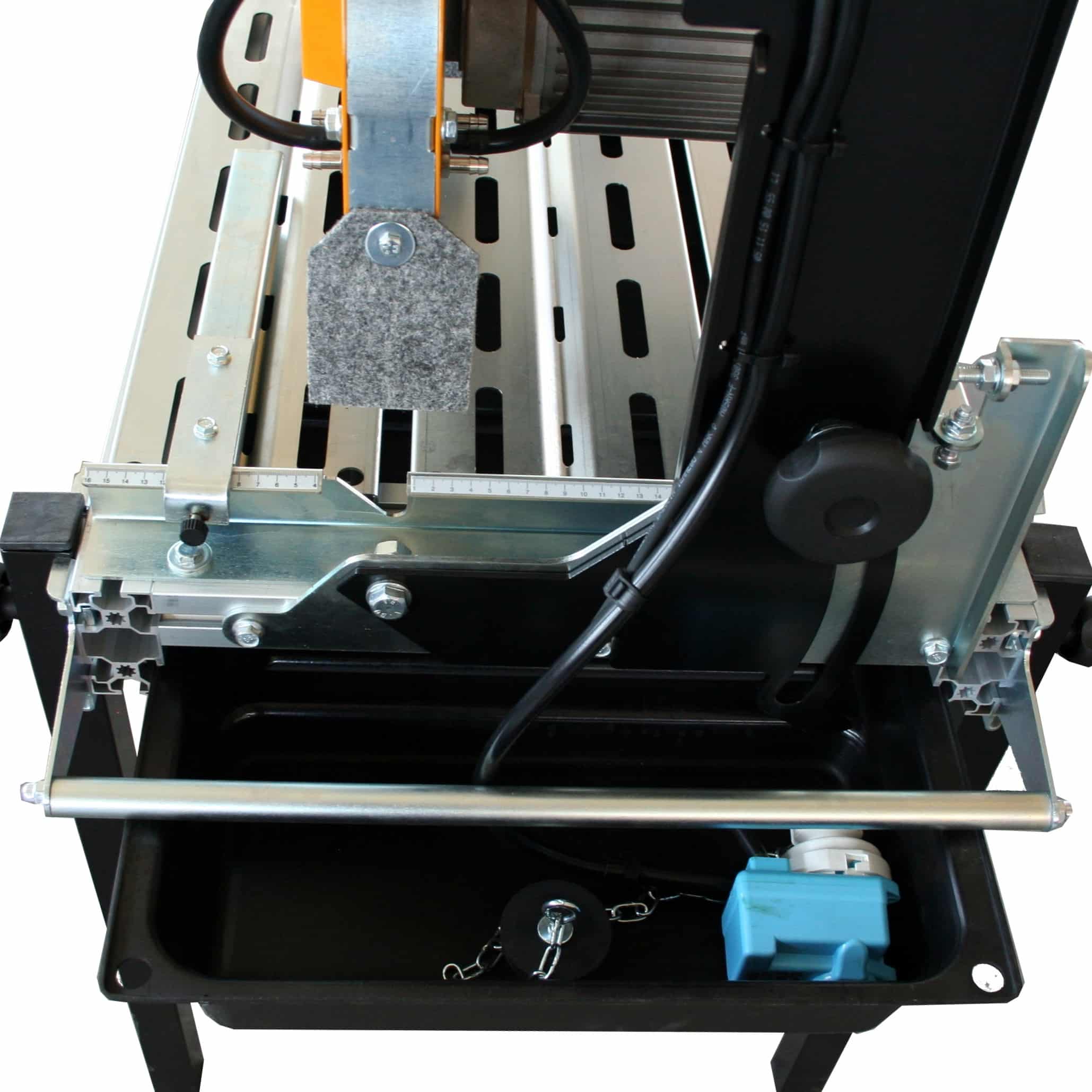

Worktable made of galvanized steel rails, with built-in handles and service square. Removable ABS water tank, impact- and wear-resistant, easy to clean and designed with a sludge separation area. Built-in recycling pump included for blade cooling during cutting.
Manual cutting depth adjustment by “plunge” mechanism.
Folding legs for easy transport.
