Monoblock bridge saw

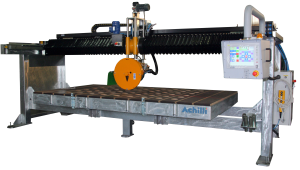

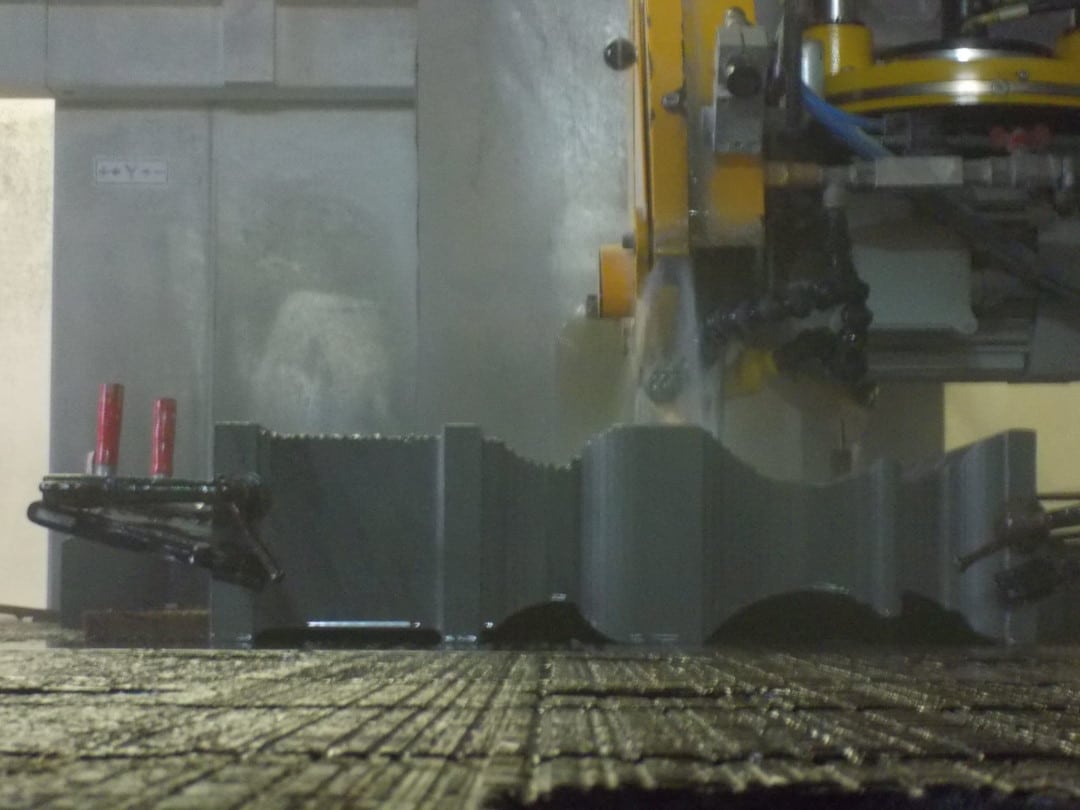

MBS TS CNC bridge saw for interpolated angle cutting in all directions
MBS TS is our best-selling bridge saw; the perfect combination of simplicity, flexibility and durability. The installation is easy and does not require a foundation. The machine is equipped with a compressed, rectified and chromed “active beam” for the utmost accuracy. The rotation of the head allows you to perform interpolated angle cutting in all directions.
MBS TS is our historical monoblock bridge saw with CNC axis control unit for cut programming:
- Fully customizable according to customer requirements;
- Monoblock structure for easy installation;
- The perfect cutting precision is guaranteed by the special design of the beam;
- Manual or automatic head rotation to perform interpolated angle cutting in all directions.
|X axis travel||3500/3900 mm (11'5"/12'8")|
|Y axis travel||1930 mm|
|Z axis travel||380 mm|
|Worktable dimensions||4600x2200 mm|
|Max. diamond blade diameter||350-500 mm|
|Blade bore size||50 mm|
|Manual head tilt||90° - 45°|
|Head rotation||0°- 90°- 180°- 270° / 0°- 340°|
|Main motor power||7.5kW = 10HP / 11kW = 15HP|
|Main motor rotation speed||1400 rpm 50Hz – 1700 rpm 60Hz|
|Main motor variable speed (optional)||700 - 3400 rpm|
|Standard voltage/frequency||400V-50/60Hz / 230V-60Hz 3ph.|
Steel frame, sandblasted and ceramic coated (hot-dip galvanizing treatment upon request).

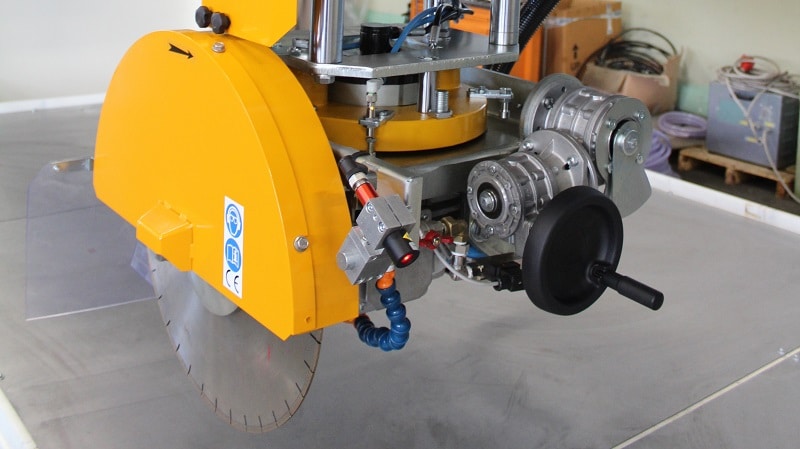

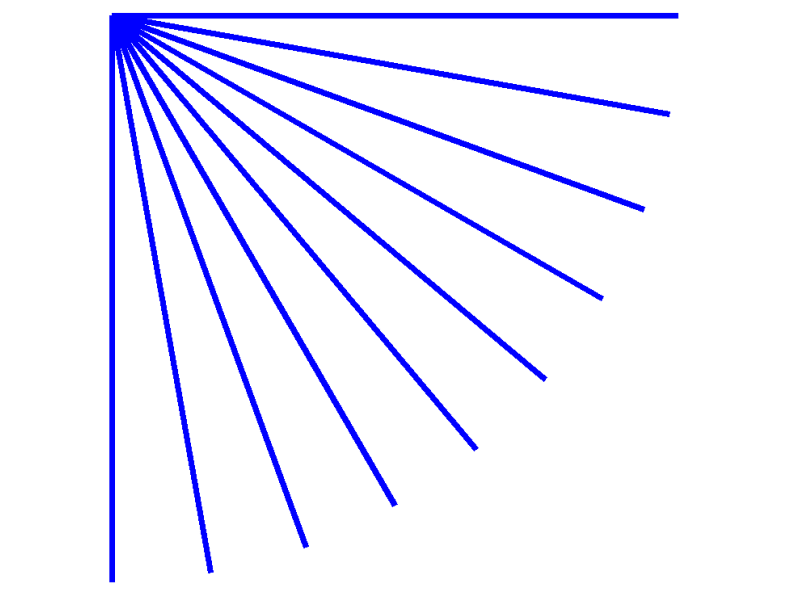

Manual or automatic rotation of the head to perform interpolated angle cutting and diagonal cuts in all directions. Hydraulic lock of main motor rotation by push buttons.
Motorized head travel with variable speed on three axes (X-Y-Z). Head travel on steel guides with angled rack and pinion to ensure maximum precision. Head raises and lowers on chromed steel columns and threaded rod.

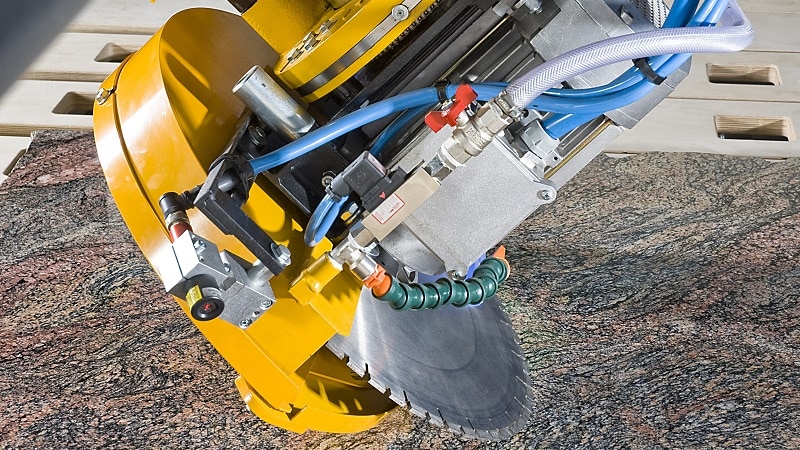

Manual head tilt from 90° to 45° along X axis, for inclined cuts.

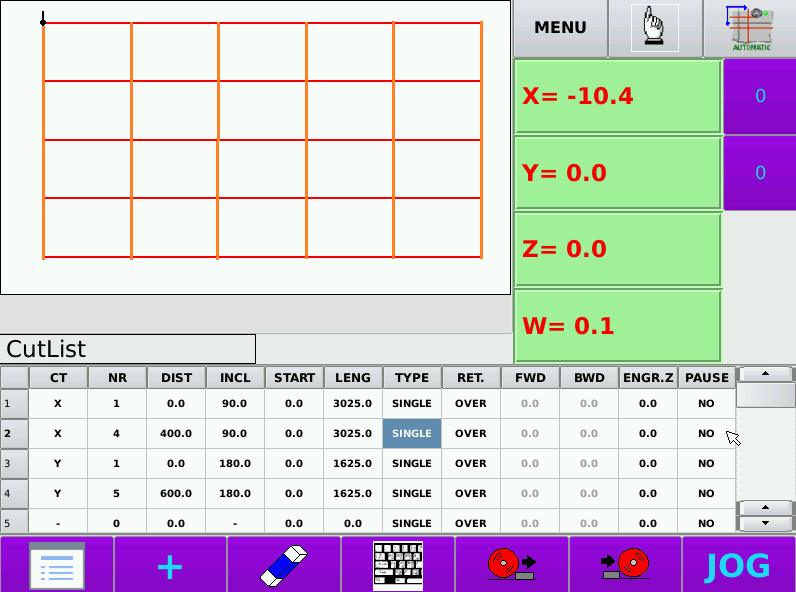

CNC axis control unit with touch-screen color display with cutting profile programming. It allows automatic execution of cutting programs without manual intervention.
Available with fixed, tilting and/or rotating work table.
Laser alignment device mounted on the head shows the blade’s cutting line.
Hydraulic motorized pop-up rollers for easy slab loading and positioning.
Hot-dip galvanized frame for lasting machine durability.
Motorized slab loader with hydraulic tilt permitting easy slab loading and off loading from machine’s worktable, in machines with fixed worktable.
Wired or wireless pendant control enabling quick head movement when the operator is working far from the control position.
TILTING WORK TABLE
Hydraulic work table tilt for easy slab loading. Work Table dimensions 118/138x75in. (3000/3500x1900mm)
Available with rotating work table with free lock and positive lock at ±180°, ±90°, ±45° e 0°.
Water tank with built in recycling pump for model with fixed worktable.
Possibility to provide bridge and rails for installation on existing walls.
Protection bellows for X and/or Y axis.
