SC500

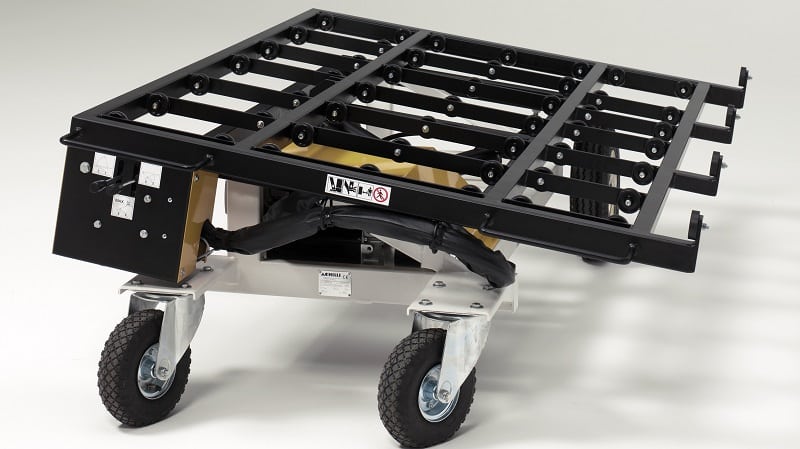

Slab Cart SC500

Hydraulically actuated, battery operated, indispensable for lifting and positioning slabs around your shop and onto the worktable of your machines. Equipped with a rechargeable battery. The telescopic panel enables you to handle large slabs effortlessly.

ADVANTAGES

Our slab trolley SC500 is designed to safely handle large stone slabs:

  • Lifting surface of 1380×2000 mm (4’6”x6’6”);
  • Extendable telescopic panel for easy access to lever controls when loading large slabs;
  • Worktop fitted with hardwearing plastic wheels for easy slab loading and off-loading;
  • Motorized hydraulic system powered by battery.

FEATURES

STRUCTURE

Stable and sturdy steel frame, equipped with 4 pneumatic wheels 2 of which are pivoting. Loading capacity 1100lbs. (500kg.)

LIFTING

Worktop adjustable in height from 650 to 960 mm.

TELESCOPIC PANEL

Extendable telescopic panel for easy access to lever controls when loading large slabs.

HANDLING

Adjustable worktop is controlled by levers or (optional) corded pendant control unit.

WORKTOP

Worktop 54x79in. (1380×2000mm), fitted with hard wearing plastic wheels for easy slab loading and off-loading.

ACCESSORIES

HOT-DIP GALVANIZING TREATMENT FRAME

Available with hot-dip galvanized frame.
