GOLD

CNC Bridge Saws

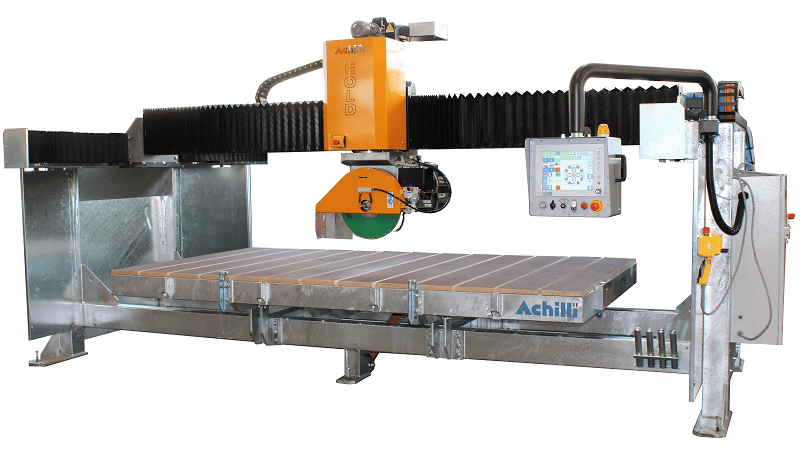

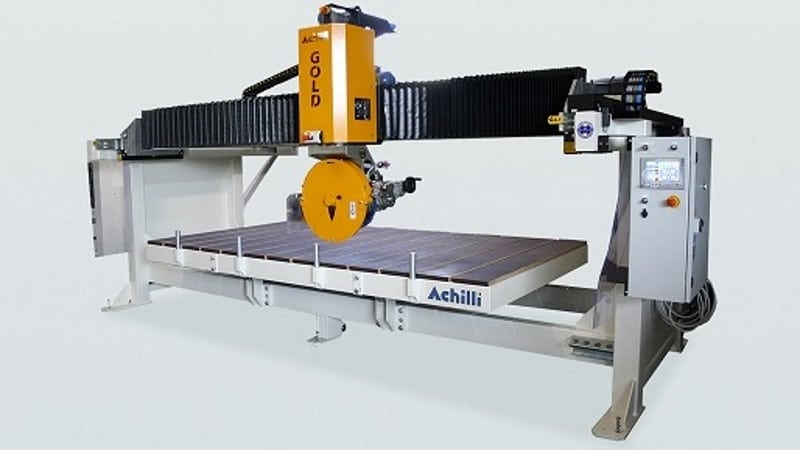

MONOBLOCK BRIDGE SAW GOLD
HIGH PRECISION 4-AXIS OR 5-AXIS MONOBLOCK BRIDGE SAW

Monoblock bridge saw with automatic head rotation to perform straight cuts in all directions. Manual or automatic head tilt from 90° to 0° for tilted and horizontal cutting with special connection for mounting core drills. High precision head motion on linear guides with recirculating ball slides.

ADVANTAGES

GOLD is the newest generation 4 or 5 axis bridge saw for cutting stone slabs:

  • Customizable according to customer requirements;
  • Monoblock structure for easy installation (does not require foundation);
  • Automatic head rotation;
  • Precision Stone Cutting: extremely accurate and consistent stone sawing.
  • Simple to Operate: GOLD is capable of fully automatic operation or can be operated in a semi-automatic mode to give the operator full control of sawing operations;
  • Manual or CNC controlled head tilt from 90 to 0 degrees;

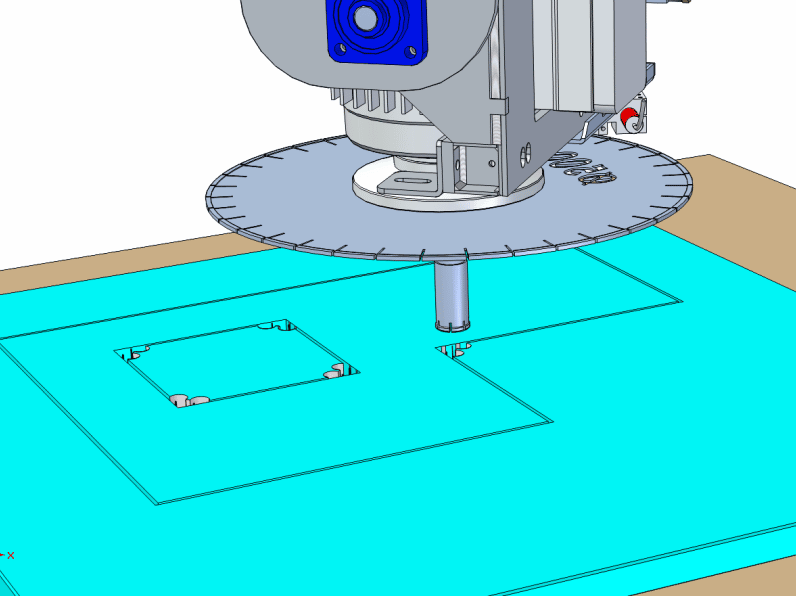

  • 1/2” gas connection for mounting core drills and perform an automatic drilling cycle to easily cut corners and remove the tension from the sintered material plates;
  • Pre-loaded parametric figures such as hexagon, octagon, kitchen top, trapezium, polygon, etc.
  • Profiling environment programming to create artistic frames and decorations.

TECHNICAL DETAILS

12
X axis travel3500/3900 mm (11'5"/12'8")
Y axis travel1930/2350 mm (6'3"/7'8")
Z axis travel300 mm (12")
Worktable dimensions4800x2200 mm (11'5"" x 7'2")
Diamond blade diameter350-525 mm (14"-20")
Blade bore size50 mm
Head tilt90° - 0°
Head rotation0°- 360°
Main motor power11kW = 15HP
Main motor rotation speed1400 rpm 50Hz – 1700 rpm 60Hz
Main motor variable speed 800 - 3000 rpm
Standard voltage/frequency 3ph. 400V-50/60Hz 230V-60Hz

STURDY STRUCTURE

Steel frame, sandblasted and ceramic coated (hot-dip galvanized upon request).

HEAD ROTATION

Automatic rotation of the head in two positions 0-90 degree, or from 0 to 360 degree controlled by CNC. Allows the execution of straight cuts along different interpolated lines and the execution of cutting programs without any manual operation.

HEAD MOTION

High precision head motion, on linear guides (X and Z axis) with recirculating ball slides by means of motors equipped with digital inverters. The Y-axis runs on steel guides with bearings. The X and Y axis run on an angled rack and pinion.

HEAD TILT

Manual or automatic head tilt from 90 to 0 degrees for inclined and horizontal cuts, degrees displayed by scale and arrow (manual version) or on the touch screen panel (automatic version).

CNC CONTROL

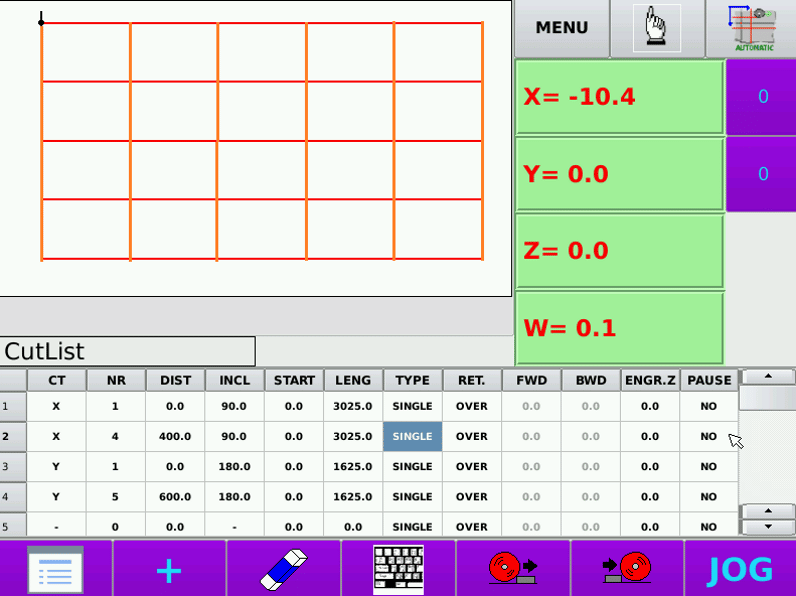

CNC axis control unit with touch-screen color display for cut programming. It allows the automatic execution of cutting programs without manual intervention.

MACRO

Pre-loaded figures such as hexagon, octagon, kitchen top, trapezium, polygon, etc.

SURFACE PROFILING

The “PROFILING” environment of the CNC control unit, through the drawing menu, allows artistic frames and decorations for funerary art, square columns or capital.

WORKTABLE

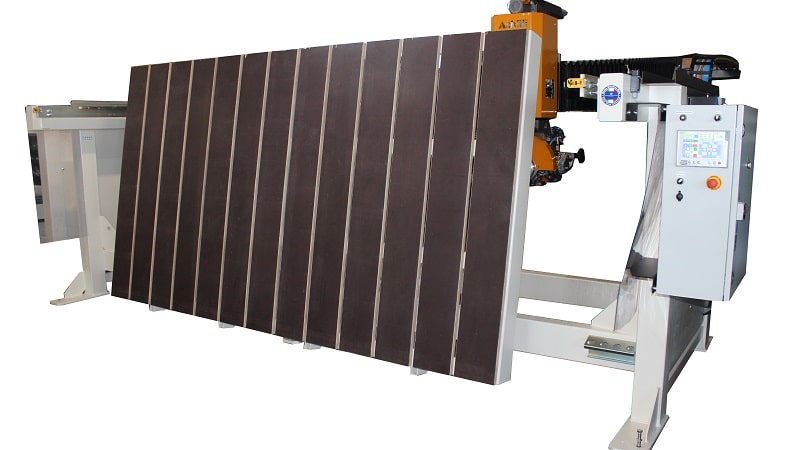

Available with a fixed, tilting and/or rotating work table. The work table can be covered with replaceable marine plywood boards, or ready to pour concrete.
